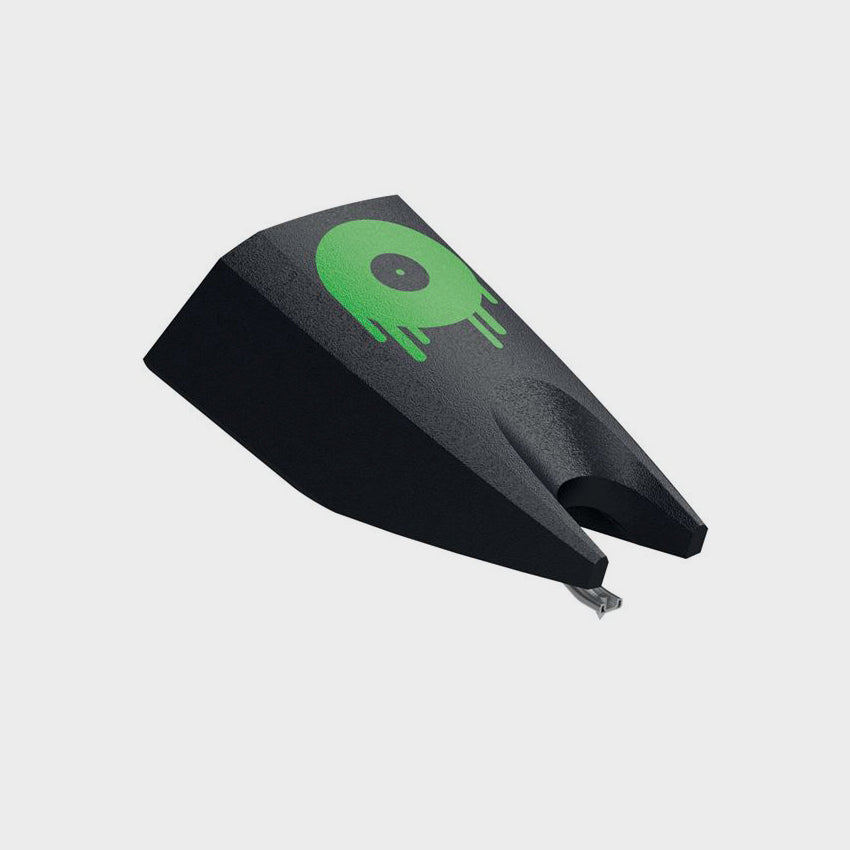

Replacement stylus  for Concorde MkII MIX

Replacement stylus for Concorde MkII MIX

Ortofon

Regular price $48.00

A replacement stylus for an Ortofon Concorde MKII; offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

Features:
• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut‐out

Technical specs:
• Output voltage at 1000Hz, 5cm/sec. - 6 mV
• Channel balance at 1kHz - 1,5 dB
• Channel separation at 1kHz - 20 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at -3dB - 20-20.000 Hz
• Tracking ability at 315 Hz at recommmended tracking force - 100 μm
• Compliance, dynamic lateral - 14 μm/m N
• Stylus type - Spherical R 18 μm
• Tracking force range - 2 - 4 g
• Tracking force recommended - 3 g

Recommended exclusively for Concorde MkII MIX.

PLEASE NOTE THAT CONCORDE MKI AND CONCORDE MKII STYLI ARE NOT INTERCHANGABLE AND WILL NOT EVEN FIT PHYSICALLY - PLEASE CHECK YOUR MODEL CAREFULLY AND IF IN DOUBT, EMAIL US HERE FOR MORE INFORMATION.
